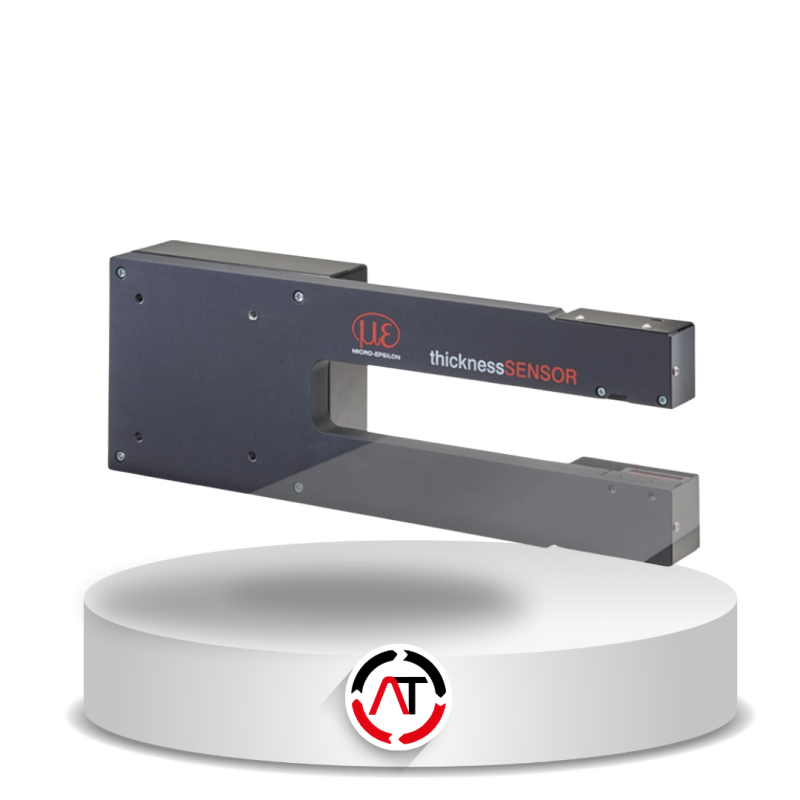

thicknessSENSOR adalah sistem pengukuran ketebalan non-kontak berpresisi tinggi yang siap pakai untuk material strip dan pelat. Menggunakan dua sensor perpindahan yang dipasang saling berhadapan, sistem ini mengukur ketebalan dari kedua sisi berdasarkan prinsip selisih, dengan output analog maupun digital via Ethernet. Desainnya yang ringkas memudahkan integrasi di ruang terbatas, sementara antarmuka web intuitif memungkinkan pengaturan cepat, penyimpanan preset, dan optimasi pengukuran secara fleksibel.
| Model | thicknessSENSOR 10/200 | thicknessSENSOR 10/400 | thicknessSENSOR 25/200 | thicknessSENSOR 25/400 |
|---|---|---|---|---|
| Measuring range | 10 mm | 10 mm | 25 mm | 25 mm |
| Working gap | 46 mm | 46 mm | 71 mm | 71 mm |
| Measuring width | 200 mm | 400 mm | 200 mm | 400 mm |
| Linearity (combined) | ±10 µm | ±10 µm | ±40 µm | ±40 µm |
| Measuring rate | 0.25 kHz / 0.5 kHz / 1 kHz / 2 kHz / 4 kHz | |||
| Light source | Semiconductor laser < 1 mW, 670 nm (red) | |||
| Permissible ambient light | 20,000 lx | |||
| Light spot diameter (±10%) | 65 × 680 µm | 80 × 970 µm | ||
| Protection class | IP65 | |||
| Laser safety class | Class 2 according to DIN EN 60825-1 : 2008-05 | |||
| Temperature stability | ±0.03% FSO/°C | |||
| Operating temperature | 0 °C … +50 °C (non-condensing) | |||
| Storage temperature | −20 °C … +70 °C (non-condensing) | |||
| Control inputs/outputs | 1× trigger in / 1× master / 2× switching outputs | |||
| Measurement value output | 0 ... 5 V, 0 ... 10 V, ±5 V, ±10 V, 4 ... 20 mA Ethernet | |||
| Vibration | 2 g / 20 ... 500 Hz (IEC 60068-2-6) | |||
| Shock | 15 g / 6 ms / 3 axes (IEC 60068-2-29) | |||
| Weight | 3.3 kg | 4.3 kg | 3.3 kg | 4.3 kg |
| Displays - Sensor | 3× color LEDs (power & status) | |||
| Displays - Controller | Power i.o | |||
| Operation - Web interface | Selectable averages / data reduction / setup management / limit values | |||
| Power supply | 11 ... 30 VDC, 24 V P< 5 W | |||
| Electronics | integrated signal processor, signal processing unit | |||
| Electromagnetic compatibility (EMC) | EN 61 000-6-3 / DIN EN 61326-1 (Class B) EN 61 000-6-2 / DIN EN 61326-1 | |||
