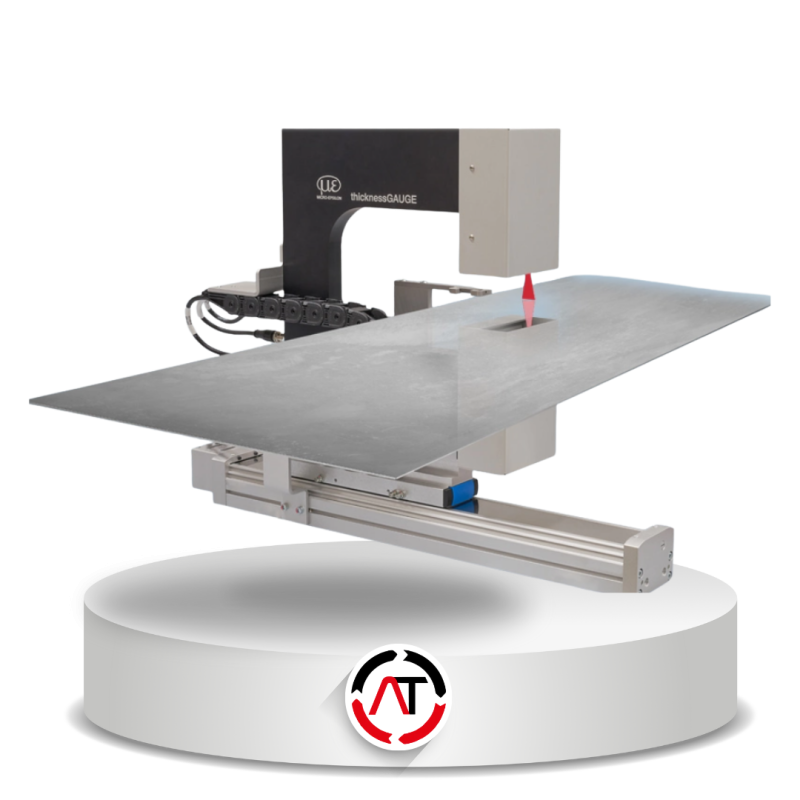

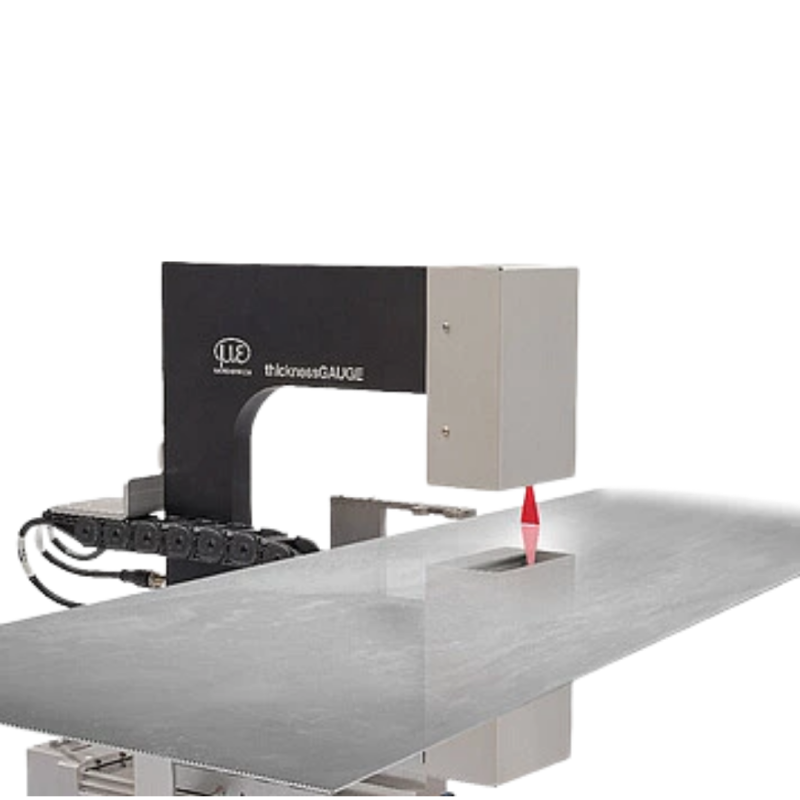

Sistem sensor thicknessGAUGE C.LP menggunakan pemindai profil laser untuk pengukuran ketebalan material berstruktur. Garis laser mengompensasi kemiringan strip dan memungkinkan perataan profil, sehingga ideal untuk permukaan emboss dan pelat berlubang.
Teknologi sensor: Sensor profil laser
Rentang pengukuran (ketebalan): 15 mm
Akurasi: ±1,2 µm
Kecepatan pengukuran: hingga 100 Hz
Cocok untuk material berstruktur, seperti pelat berlubang dan permukaan emboss
Mendukung metode best-fit line
Kompensasi untuk strip yang miring
| Model | C.LP-15/200 | C.LP-15/400 | C.LP-15/600 |
|---|---|---|---|
| Article number | 4350127.720 | 4350127.721 | 4350127.722 |
| Measuring width | 200 mm | 400 mm | 600 mm |
| Operating range | 144 mm | ||
| Measuring range | 15 mm | ||
| Max. travel path | 380 mm | 580 mm | 780 mm |
| System accuracy | ± 1.2 µm | ||
| Resolution | 0.2 µm | ||
| Measuring rate | 100 Hz | ||
| Calibration | Automatic | ||
| Weight - Axis, motor and C-frame | 17.6 kg | 22.3 kg | 26.8 kg |
| Weight - Bus terminal box and panel IPC | 14.1 kg | ||
| Supply voltage | 24 V | ||
| Humidity | 5 % RH ... 95 % RH (non-condensing) | ||
| Protection class (DIN EN 60529) | IP40 (bus terminal box IP54) | ||
| Temperature range - Storage | -20 ... 65 °C | ||
| Temperature range -Operation | 5 ... 45 °C | ||
| Control and display elements | Panel-IPC with thicknessCONTROL software included in the scope of supply | ||
| Special features | Compact bus terminal box measuring just 300 x 300 x 210 mm | ||
