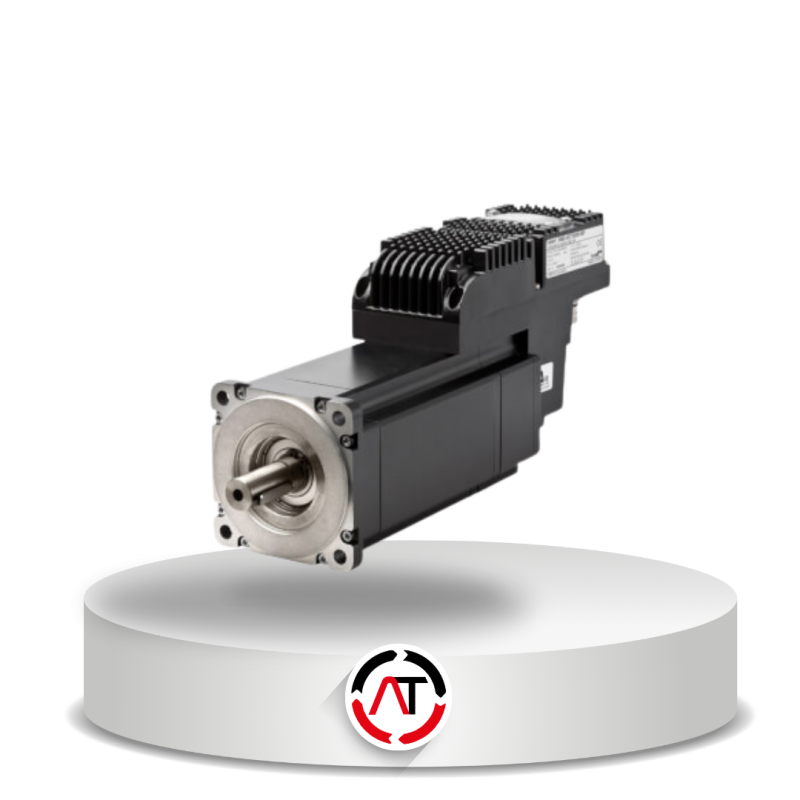

Motor dan drive terintegrasi untuk optimalisasi ruang
Solusi fleksibel yang ideal untuk mesin berukuran besar atau mesin dengan ruang kabinet yang terbatas. Integrated Servo Motor Series ini dilengkapi dengan I/O lokal untuk mempermudah pemasangan sinyal terdistribusi, serta memiliki port EtherCAT bawaan yang memungkinkan integrasi penuh dengan Sysmac Automation Platform.
| Symbol | Specifications | Order code | |||||
|---|---|---|---|---|---|---|---|
| Voltage | Encoder and design | Rated Torque | Capacity | ||||
| 1 | 500 VDC | Incremental encoder | Without brake | Straight shaft with key | 2.55 Nm | 880 W | R88E-AECT0230D-S2 |
| 3.2 Nm | 1000 W | R88E-AECT0330D-S2 | |||||
| 4.3 Nm | 1350 W | R88E-AECT0430D-S2 | |||||
| 5.0 Nm | 1570 W | R88E-AECT0530D-S2 | |||||
| 11.7 Nm | 3670 W | RR88E-AECT1130D-S2 | |||||
| 25 Nm | 7850 W | R88E-AECT2530D-S2 | |||||
| With brake | 2.55 Nm | 880 W | R88E-AECT0230D-BS2 | ||||
| 3.2 Nm | 1000 W | R88E-AECT0330D-BS2 | |||||
| 4.3 Nm | 1350 W | R88E-AECT0430D-BS2 | |||||
| 5.0 Nm | 1570 W | R88E-AECT0530D-BS2 | |||||
| 11.7 Nm | 3670 W | R88E-AECT1130D-BS | |||||
| 25 Nm | 7850 W | R88E-AECT2530D-BS2 | |||||
| 2 | 500 VDC | Multiturn absolute encoder | Without brake | Straight shaft with key | 2.55 Nm | 880 W | R88E-AECT0230E-S2 |
| 3.2 Nm | 1000 W | R88E-AECT0330E-S2 | |||||
| 4.3 Nm | 1350 W | R88E-AECT0430E-S2 | |||||
| 5.0 Nm | 1570 W | R88E-AECT0530E-S2 | |||||
| 11.7 Nm | 3670 W | R88E-AECT1130E-S2 | |||||
| 25 Nm | 7850 W | R88E-AECT2530E-S2 | |||||
| With brake | 2.55 Nm | 880 W | R88E-AECT0230E-BS2 | ||||
| 3.2 Nm | 1000 W | R88E-AECT0330E-BS2 | |||||
| 4.3 Nm | 1350 W | R88E-AECT0430E-BS2 | |||||
| 5.0 Nm | 1570 W | R88E-AECT0530E-BS2 | |||||
| 11.7 Nm | 3670 W | R88E-AECT1130E-BS2 | |||||
| 25 Nm | 7850 W | R88E-AECT2530E-BS2 | |||||
Untuk informasi lebih banyak terkait series produk ini, silakan hubungi team kami.
