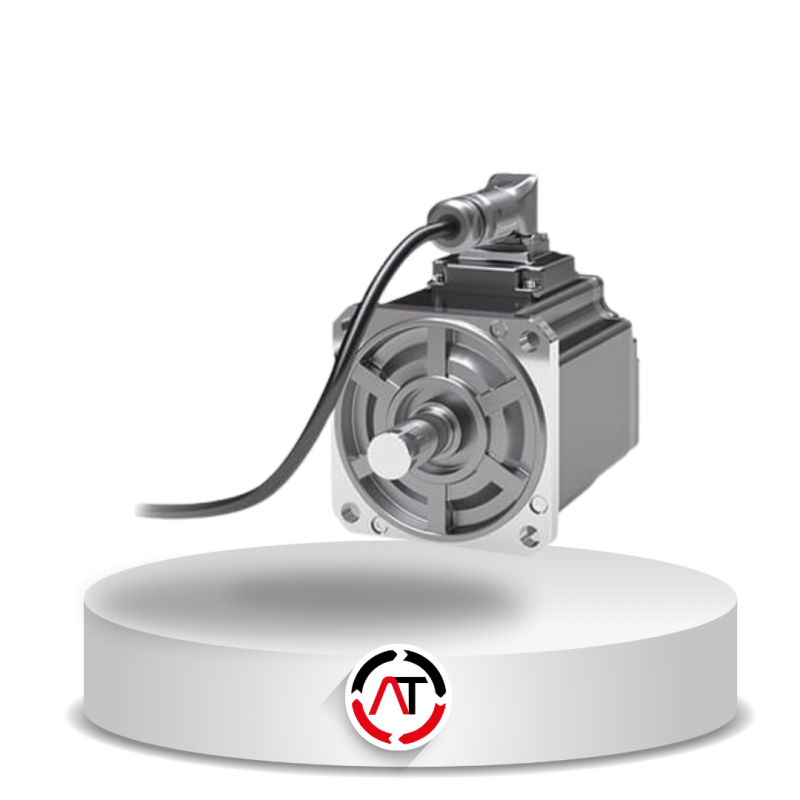

Menyederhanakan Motion dan Safety
Rating daya: 230 VAC dari 200 W hingga 1.5 kW, 400 VAC dari 750 W hingga 3 kW
Encoder absolut multi-turn tanpa baterai dengan sertifikasi keselamatan
Encoder resolusi tinggi 20-bit
Koneksi satu klik
Konektor yang dapat diputar
Mengurangi getaran pada mesin dengan rigiditas rendah selama percepatan/deselerasi
Koneksi satu kabel: daya, encoder, dan kabel rem dalam satu kabel pra-rakit dengan konektor IP67
| Product | Drive supply voltage | Rated torque | Rated speed |
|---|---|---|---|
| R88M-1AL1K030C-BS2 | 400 V three phase | 3.18 Nm | 3000 r/min |
| R88M-1AL1K030C-S2 | 400 V three phase | 3.18 Nm | 3000 r/min |
| R88M-1AL1K030T-BS2 | 230 V single phase | 3.18 Nm | 3000 r/min |
| R88M-1AL1K030T-S2 | 230 V single phase | 3.18 Nm | 3000 r/min |
| R88M-1AL1K530C-BS2 | 400 V three phase | 4.77 Nm | 3000 r/min |
| R88M-1AL1K530C-S2 | 400 V three phase | 4.77 Nm | 3000 r/min |
| R88M-1AL1K530T-BS2 | 230 V single phase | 4.77 Nm | 3000 r/min |
| R88M-1AL1K530T-S2 | 230 V single phase | 4.77 Nm | 3000 r/min |
| R88M-1AL2K030C-BS2 | 400 V three phase | 6.37 Nm | 3000 r/min |
| R88M-1AL2K030C-S2 | 400 V three phase | 6.37 Nm | 3000 r/min |
| R88M-1AL3K030C-BS2 | 400 V three phase | 9.55 Nm | 3000 r/min |
| R88M-1AL3K030C-S2 | 400 V three phase | 9.55 Nm | 3000 r/min |
| R88M-1AL75030C-BS2 | 400 V three phase | 2.39 Nm | 3000 r/min |
| R88M-1AL75030C-S2 | 400 V three phase | 2.39 Nm | 3000 r/min |
| R88M-1AM1K515C-BS2 | 400 V three phase | 9.55 Nm | 1500 r/min |
| R88M-1AM1K515C-S2 | 400 V three phase | 9.55 Nm | 1500 r/min |
| R88M-1AM1K515T-BS2 | 230 V single phase | 9.55 Nm | 1500 r/min |
| R88M-1AM1K515T-S2 | 230 V single phase | 9.55 Nm | 1500 r/min |
| R88M-1AM20030T-BS2 | 230 V single phase | 0.637 Nm | 3000 r/min |
| R88M-1AM20030T-S2 | 230 V single phase | 0.637 Nm | 3000 r/min |
| R88M-1AM3K015C-BS2 | 400 V three phase | 19.1 Nm | 1500 r/min |
| R88M-1AM3K015C-S2 | 400 V three phase | 19.1 Nm | 1500 r/min |
| R88M-1AM40030T-BS2 | 230 V single phase | 1.27 Nm | 3000 r/min |
| R88M-1AM40030T-S2 | 230 V single phase | 1.27 Nm | 3000 r/min |
| R88M-1AM75030T-BS2 | 230 V single phase | 2.39 Nm | 3000 r/min |
| R88M-1AM75030T-S2 | 230 V single phase | 2.39 Nm | 3000 r/min |
