Industrial Instruments, Weather Monitoring

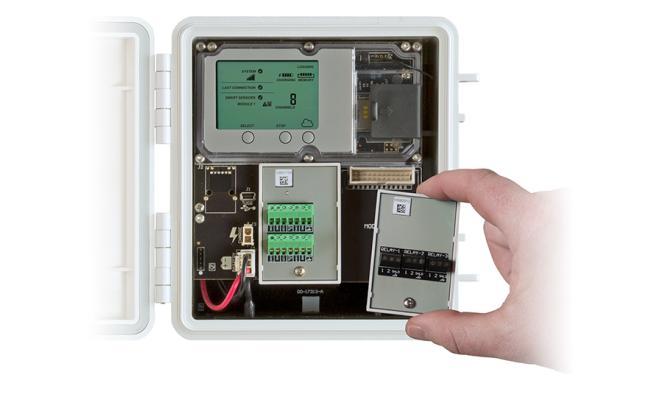

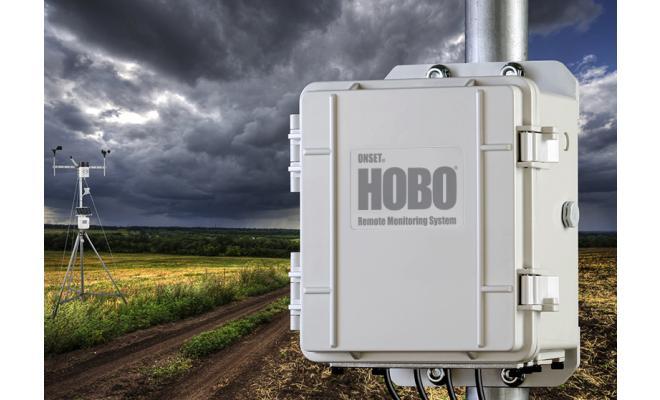

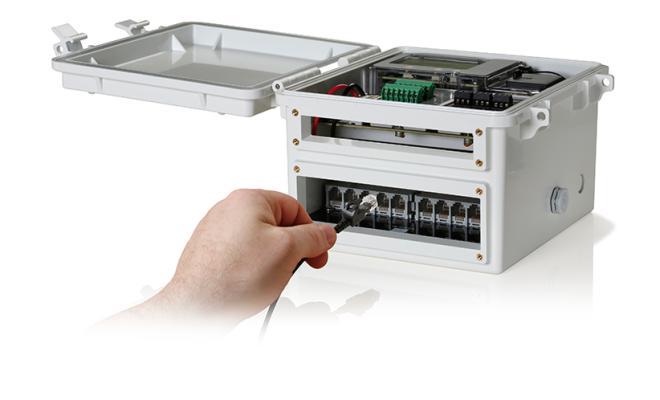

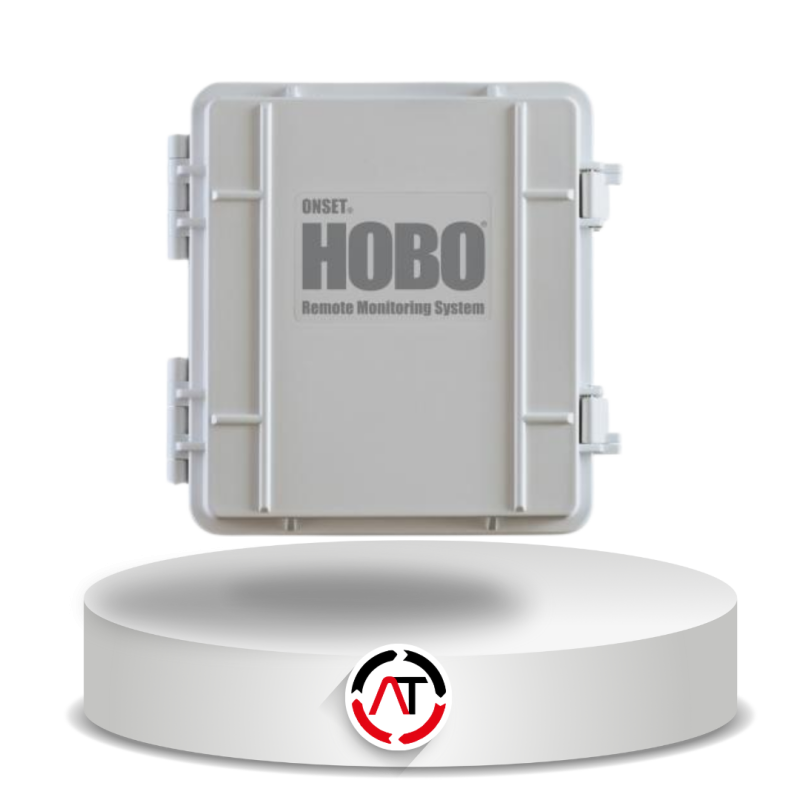

RX3000 Remote Monitoring Station

Tersedia

Overview

Stasiun data logging jarak jauh berbasis cloud paling fleksibel dari HOBO yang menyediakan data lingkungan indoor dan outdoor secara real-time dan spesifik per lokasi.

Features

  • Mendukung berbagai jenis sensor secara fleksibel
  • Layar LCD untuk kemudahan instalasi di lapangan
  • Akses data berbasis cloud melalui HOBOlink
  • Akses data 24/7 melalui browser web
  • Verifikasi status sistem RX3000 dari jarak jauh
  • Pengaturan dan manajemen notifikasi alarm melalui web
  • Penjadwalan pengiriman data otomatis
  • Operasi plug-and-play yang mudah
  • Notifikasi alarm melalui SMS dan email
  • Enklosur ganda yang kokoh dan tahan cuaca
  • Konfigurasi melalui perangkat seluler
  • Modul input analog, relay, dan sensor ketinggian air opsional
  • Pemantauan jarak jauh ketinggian dan aliran air dengan modul RXMOD-W1
  • Akses ke model risiko penyakit tanaman dan hama serangga NEWA

Deskripsi Produk

Operating Range-40° to 60°C (-40° to 140°F); no remote communications for battery voltage less than 3.9 V DC
Smart Sensor Connectors10
Smart Sensor Network Cable Length100 m (328 ft) maximum
Smart Sensor Data ChannelsMaximum of 15 (some smart sensors use more than one data channel; see sensor manual for details)
Module Slots2 slots
Logging Rate1 second (RX3001 and RX3002) or 1 minute (RX3003 and RX3004) to 18 hours
Time Accuracy±8 seconds per month in 0° to 40°C (32°F to 104°F) range;
±30 seconds per month in -40° to 60°C (-40° to 140°F) range
Battery Type/Power Source4 Volt, 10 AHr, rechargeable sealed lead-acid; external power required using one of these options: AC power adapter (AC-U30), solar panel (SOLAR-xW), or external power source 5 V DC to 17 V DC with external DC power cable (CABLE-RX-PWR)
Rechargeable Battery Service LifeTypical 3–5 years when operated in the temperature range -20° to 40°C (-4°F to 104°F); operation outside this range will reduce the battery service life
Memory32 MB, 2 million measurements, continuous logging
Alarm Notification LatencyLogging interval plus 2–4 minutes, typical
Enclosure AccessHinged door secured by two latches with eyelets for use with user-supplied padlocks
LCDLCD is visible from 0° to 50°C (32° to 122°F); the LCD may react slowly or go blank in temperatures outside this range
MaterialsOuter enclosure: Polycarbonate/PBT blend with stainless steel hinge pins and brass inserts; Inner enclosure: Polycarbonate; Gaskets: Silicone rubber; Cable channel: EPDM rubber; Cable opening cover: Aluminum with ABS plastic thumb screws; U-Bolts: Steel with zinc dichromate finish
Size
18.6 x 18.1 x 11.8 cm (7.3 x 7.1 x 4.7 in.)
Weight
2.2 kg (4.85 lb)
Mounting3.8 cm (1.5 inch) mast or wall mount
Environmental RatingWeatherproof enclosure, NEMA 4X (requires proper installation of cable channel system)
Wireless RadioRX3003:
GSM/GPRS/EDGE: Quad band 850/900/1800/1900 MHz, UMTS/HSPA+: Five band 800/850/900/1900/2100 MHzRX3004:
GSM/GPRS/EDGE: Quad band 850/900/1800/1900 MHz
UMTS/HSPA+: Seven band 800/850/900/1800/1900/2100 MHz
LTE: Twelve Band 700/800/850/900/1800/1900/2100/2600 MHz
AntennaRX3003: Penta band
RX3004: 4G LTE

Ethernet (RX3001)

ConnectorOne RJ45/100BaseT

Wi-Fi (RX3002)

Network StandardsIEEE 802.11b/g/n
Frequency Range2.412–2.484 GHz
Antenna Connector1, no diversity supported
Data Rates1, 2, 5.5, 11 Mbps (802.11b); 6, 9, 12, 18, 24, 36, 48, 54 Mbps (802.11g); 802.11n, HT20 MCS0 (6.5 Mbps) to HT20 MC87 (65 Mbps)
Number of Selectable Radio SubchannelsUp to 14 channels; profiles available will include USA, France, Japan, Spain, Canada, and “Other” (multiple countries)
Radio ModulationsOFDM, DSSS, DBPSK, DQPSK, CCK, 16QAM, 64QAM
SecurityWEP 64/128, WPA-PSK, AES end-to-end encryption, WPA2, protocols not listed are not supported
Maximum Receive Level-10 dBm (with PER <8%)
Receiver Sensitivity-72 dBM for 54 Mbps, -87 dBm for 11 Mbps, -89 dBm for 5.5 Mbps, -90 dBm for 2.0 Mbps, -92 dBm for 1.0 Mbps

Cellular (RX3003 and RX3004)

Wireless RadioRX3003:
GSM/GPRS/EDGE: Quad band 850/900/1800/1900 MHz
UMTS/HSPA+: Five band 800/850/900/1900/2100 MHzRX3004:
GSM/GPRS/EDGE: Quad band 850/900/1800/1900 MHz
UMTS/HSPA+: Seven band 800/850/900/1800/1900/2100 MHz
LTE: Twelve Band 700/800/850/900/1800/1900/2100/2600 MHz
AntennaRX3003: Penta band
RX3004: 4G LTE
