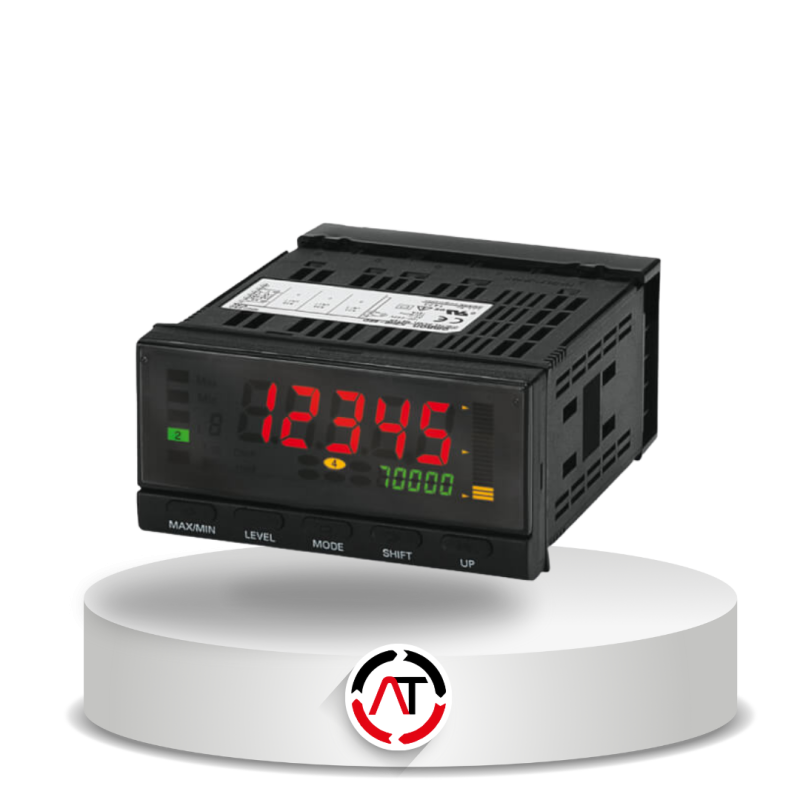

Indikator dengan input digital ini dilengkapi dengan tampilan perubahan warna yang jelas dan mudah digunakan. Semua model dilengkapi dengan housing berstandar IP66. K3HB-C memiliki kecepatan tinggi dengan sample rate hingga 50 kHz.
Indikasi posisi meter untuk pemantauan yang mudah
Opsi komunikasi: DeviceNet, RS-232C, RS-485
Tampilan ganda dengan 5 digit dalam dua warna
Dimensi: H 48 x W 96 x D 100 mm
| Power supply voltage | 100 to 240 VAC (50/60 Hz), 24 VAC/VDC, DeviceNet power supply: 24 VDC | ||
| Allowable power supply voltage range | 85 to 110% of the rated power supply voltage, DeviceNet power supply: 11 to 25 VDC | ||
| Power consumption | 100 to 240 V: 18 VA max. (max. load), 24 VAC/DC: 11 VA/7 W max. (max. load) | ||
| Display method | Negative LCD (backlit LED) display 7-segment digital display (character height: PV: 14.2 mm (green/red); SV: 4.9 mm (green)) | ||
| Ambient operating temperature | -10 to 55°C (with no icing or condensation) | ||
| Display range | -19,999 to 99,999 | ||
| Weight | Approx. 300 g (base unit only) | ||
| Degree of protection | Front-panel | Conforms to NEMA 4X for indoor use (equivalent to IP66) | |
| Rear case | IP20 | ||
| Terminals | IP00 + finger protection (VDE0106/100) | ||
| Memory protection | EEPROM (non-volatile memory), number of rewrites: 100,000 | ||
| Event input ratings | Contact | ON: 1 kΩ max, OFF: 100 kΩ min. | |
| No-contact | ON residual voltage: 2 V max, OFF leakage current: 0.1 mA max, load current: 4 mA max. Maximum applied voltage: 30 VDC max. | ||
| Output ratings | Transistor output | Maximum load voltage | 24 VDC |
| Maximum load current | 50 mA | ||
| Leakage current | 100 µA max. | ||
| Contact output (resistive load) | Rated load | 5 A at 250 VAC, 5 A at 30 VDC | |
| Rated through current | 5 A | ||
| Mechanical life expectancy | 5,000,000 operations | ||
| Electrical life expectancy | 100,000 operations | ||
| Linear output | Allowable load impedance | 500 Ω max. (mA); 5 kΩ min. (V) | |
| Resolution | Approx. 10,000 | ||
| Output error | ±0.5% FS | ||
| Size in mm (H×W×D) | 48×96×100 | ||
