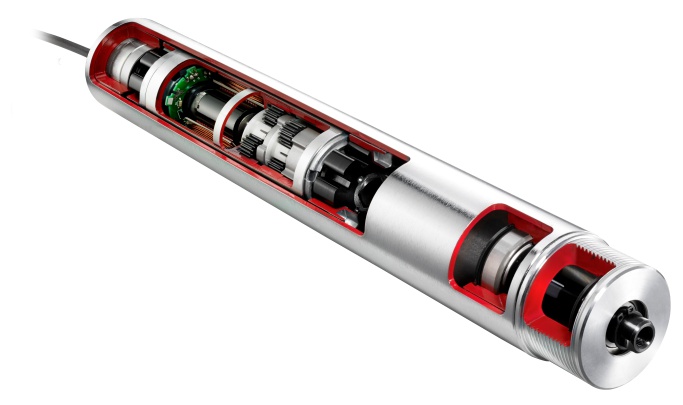

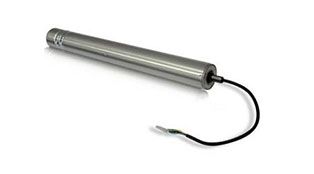

ITOH DENKI PM570KT Motorized Conveyor Roller

Tersedia

Short Descriptions:

Features:

  • Durable brushless DC motor with quiet, energy-efficient operation. Compatible with Intralox MDR sprockets.

Operation:

  • Suitable for continuous or intermittent duty. Minimum cycle: 1s ON, 1 OFF. Avoid exceeding 150% of no-load speed.

Environment:

  • Operates in temperatures from 32-104°F with <90% humidity. Resistant to vibrations (<0.5G) and free from corrosive gases.

Specifications:

  • 12-pin connector, high torque, and IP54 enclosure. Includes a 20mm hex shaft, 1000mm power cable, and requires specific mounting brackets.

Deskripsi Produk

CategoryDetails
Features- Brushless DC motor provides long life
- Run-on-Demand technology allows for energy-efficient operation
- Spring-loaded shaft for ease of installation
- Quiet operation
- Compatible with Intralox MDR sprocket and belting
Operation- Continuous or intermittent duty
- Minimum cycle: 1s ON; 1 OFF
- Do not exceed 150% of no-load speed
Environment- Ambient temperature: 32-104°F (0-40°C)
- < 90% relative humidity (no condensation)
- No corrosive gases
- Vibration < 0.5G
Specifications- 12 pin connector
- ABEC 1 bearings for durability
- 13.5mm (0.53”) hex shaft
- High torque
- Thermal overload 221°F (105°C) in the motor when used with an Itoh Denki controller
- AL700 splined aluminum tube option available for Intralox patented MDR sprocket
- Supplied with 20mm (13/16”) exposed hexagonal shaft
- Dual shaft mounting
- IP54 enclosure
- Class E Insulation
- Standard 1000mm (39.4”) power cable
- Standard hex shaft requires (1) MBK-0K1 and (1) MBK-0K17 mounting bracket
