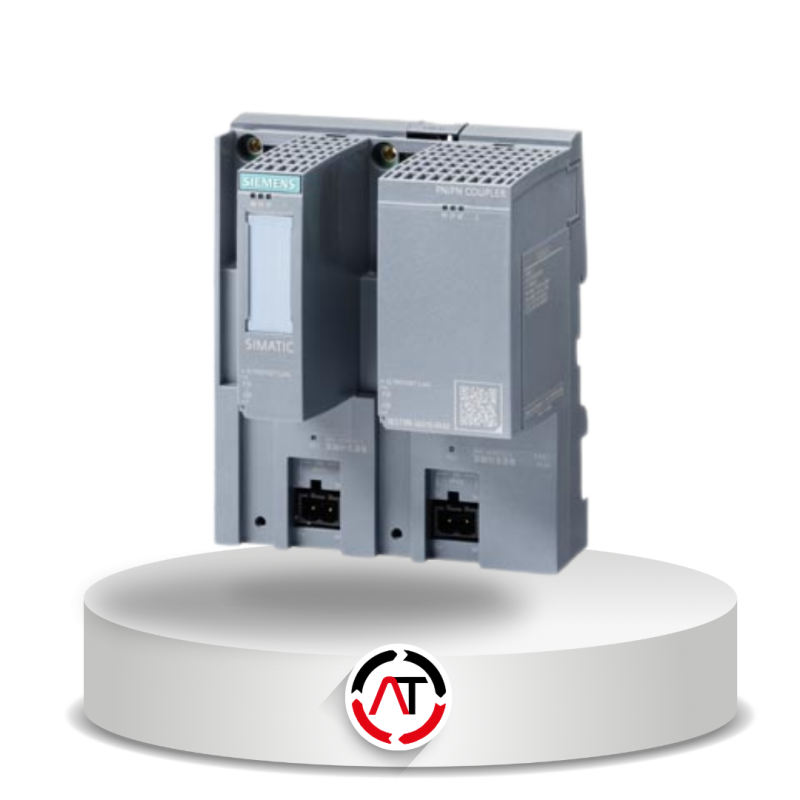

Gateway - SIMATIC PN/PN Coupler
Cumunicating & Networking

Gateway - SIMATIC PN/PN Coupler

Tersedia

Overview

SIMATIC PN/PN Coupler untuk pertukaran data deterministik antara maksimal 4 PN-Controller per subnet, termasuk pertukaran data dari satu subnet ke subnet lainnya. Mendukung pertukaran data PROFIsafe, komunikasi I/O, MSI, MSO, dan data record. Dilengkapi catu daya redundan serta koneksi PN melalui SIMATIC BusAdapter (BA). Produk dikirim tanpa BusAdapter.

Features

  • Siklus produk
    Produk Aktif

  • Kelas produk
    A: Produk standar yang merupakan barang stok dan dapat dikembalikan sesuai pedoman/periode pengembalian.

  • Dimensi kemasan (P x L x T)
    13,4 x 13,3 x 8,5 cm

  • Berat bersih
    0,258 kg

Deskripsi Produk

Technical Data



General InformationProduct type designationPN/PN coupler
Firmware versionV6.0
● FW update possibleYes
Vendor identification (VendorID)002AH
Device Identifier (DeviceID)0604H
Product function
● I&M dataYes; I&M0 to I&M3
● Isochronous modeYes; 500 µs
● Tool changerYes; Docking station and docking unit
● Local coupling, IO dataYes
— Number of coupling modules16; in non-isochronous mode, otherwise 3
— Number of coupling submodules per module4; 1x write, 3x read in non-isochronous mode, otherwise see description in the manual
● Local coupling, data recordsYes; in non-isochronous mode
— Number of coupling modules16
— Number of coupling submodules per module4; 1x write, 3x read
— Record length, max.4 096 byte
— FIFO depth in storage mode8
Engineering with
● STEP 7 TIA Portal configurable/integrated from versionV20 or higher
● STEP 7 configurable/integrated from versionV5.7 SP3
● PROFINET from GSD version/GSD revisionGSDML V2.4.x
Installation Type / MountingMountingMounting rail 7.5 mm and 15 mm
Supply VoltageRated value (DC)24 V
Permissible range, lower limit (DC)19.2 V
Permissible range, upper limit (DC)28.8 V
Reverse polarity protectionYes
Mains buffering
Mains/voltage failure stored energy time10 ms
Input CurrentCurrent consumption, max.360 mA; For 19.2 V input voltage at the right-hand supply terminal, including 2 plugged BA 2x LC
Inrush current, max.1.6 A
I²t0.031 A²·s
From Supply Voltage 1L+, max.320 mA; For 19.2 V input voltage at the left-hand supply terminal, including 2 plugged BA 2x LC
Power lossPower loss, typ.4 W; For 24 V input voltage and 2 plugged BA 2x RJ45 If BusAdapters with an optical interface are plugged, there is an additional 750 mW per optical interface (3 W with 2 plugged BA 2x LC)
