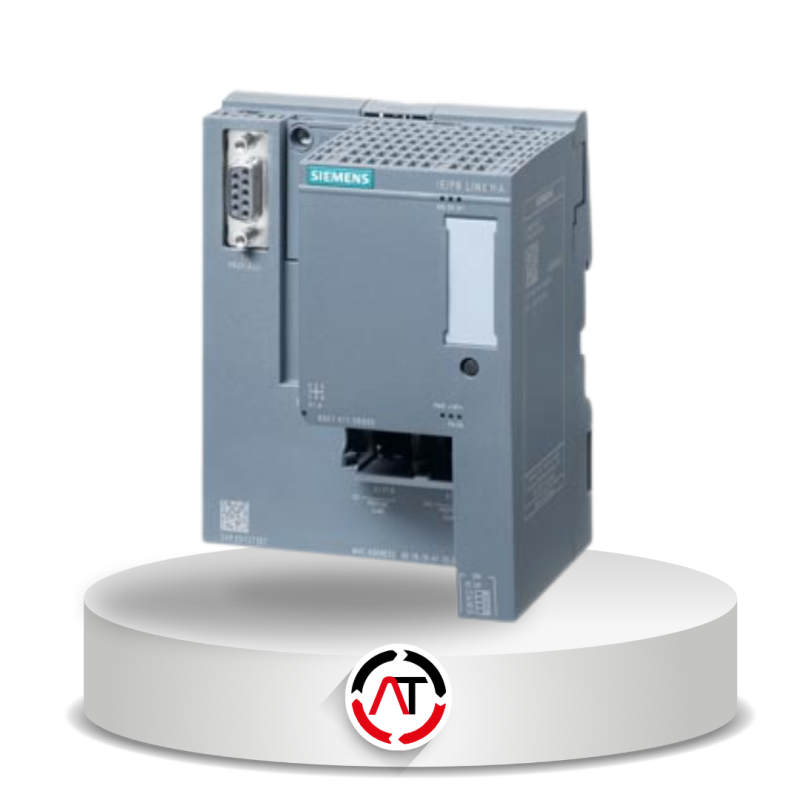

IE/PB LINK HA, gateway antara Industrial Ethernet dan PROFIBUS, PROFINET IO proxy dengan komunikasi real-time, redundansi sistem S2; H-CiR, sinkronisasi waktu melalui proses SIMATIC, NTP, SNMP V1, LLDP, S7 routing, data set routing, koneksi hingga 125 perangkat S7/DPV0/DPV1 (64 untuk operasi S2), mendukung DP/PA link dan DP/FF link, Fast Ethernet 10/100 Mbps, MRP, PROFIBUS 9.6 Kbps hingga 12 Mbps, pemuatan firmware melalui alat konfigurasi, catu daya redundan, conformal coating, suhu operasi eksternal -40 °C hingga 70 °C.
Siklus hidup produk
Produk Aktif
Kelas produk
A: Produk standar yang merupakan barang stok dan dapat dikembalikan sesuai pedoman/periode pengembalian.
Dimensi kemasan (P x L x T)
74,00 x 100,00 x 117,00 mm
Berat bersih
0,482 kg
| product type designation | IE/PB LINK HA | |
| Technical Product Detail Page | https://i.siemens.com/1P6GK1411-5BB00 | |
| suitability for operation | Gateway between Industrial Ethernet and PROFIBUS | |
| transfer rate | transfer rate ● at the 1st interface | 10, 100 Mbit/s |
| transfer rate ● at the 2nd interface | 9.6 kbit/s ... 12 Mbit/s | |
| interfaces | number of electrical connections ● at the 1st interface / according to Industrial Ethernet | 2 |
| number of electrical connections ● at the 2nd interface / according to PROFIBUS | 1 | |
| number of electrical connections ● for power supply | 2 | |
| type of electrical connection ● at the 1st interface / according to Industrial Ethernet | RJ45 port onboard or SIMATIC BusAdapter | |
| type of electrical connection ● at the 2nd interface / according to PROFIBUS | 9-pin Sub-D socket (RS 485) | |
| type of electrical connection ● for power supply | 4-pole terminal block | |
| design of the removable storage ● C-PLUG | Yes | |
| supply voltage, current consumption, power loss | type of voltage / of the supply voltage | DC |
| supply voltage / external / at DC / rated value | 24 V | |
| relative positive tolerance / at DC / at 24 V | 20 % | |
| relative negative tolerance / at DC / at 24 V | 15 % | |
| consumed current ● from external supply voltage / at DC / at 24 V / typical | 0.2 A | |
| consumed current ● from external supply voltage / at DC / at 24 V / typical | 0.3 A | |
| power loss [W] | 4.8 W; typical 4.8 W, maximum 7.2 W |
