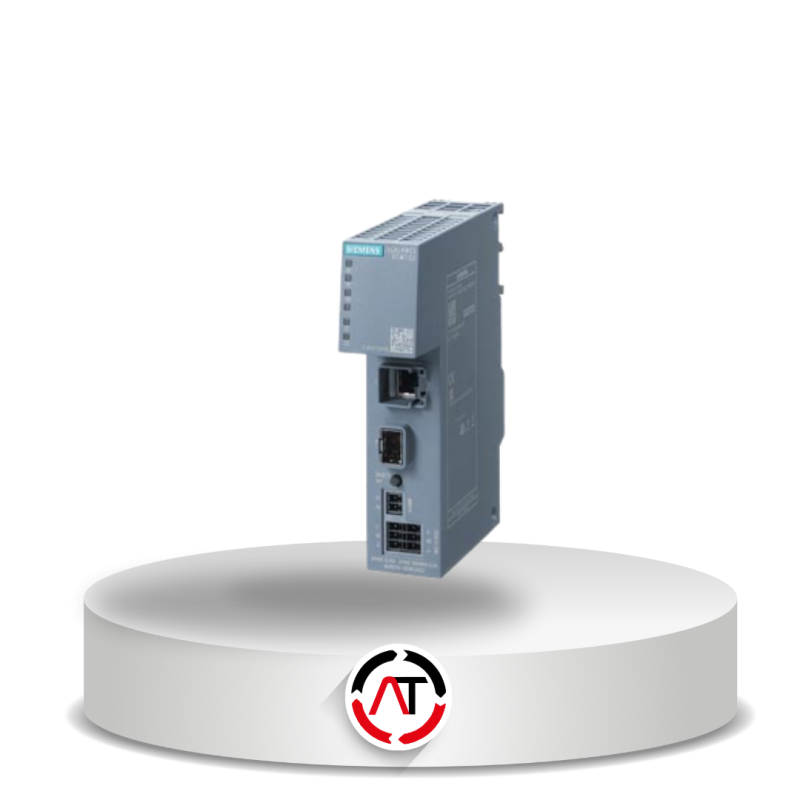

Ethernet Switches - SCALANCE XCM102
Cumunicating & Networking

Ethernet Switches - SCALANCE XCM102

Tersedia

Overview

SCALANCE XCM102, media converter IE unmanaged dengan 1x RJ45 100/1000 Mbps dan 1x SFP 100/1000 Mbps, dilengkapi diagnostik LED, kontak sinyal kesalahan dengan tombol set, power supply redundan, pengaman kabel (securing collar), serta manual yang tersedia untuk diunduh.

Features

  1. Siklus Produk
    Produk Aktif
  2. Kelas Produk
    A: Produk standar yang merupakan barang stok dan dapat dikembalikan sesuai pedoman/periode pengembalian.
  3. Dimensi Kemasan (P x L x T)
    124,00 x 60,00 x 125,00 mm
  4. Berat Bersih
    0,52 kg

Deskripsi Produk

Series

Product Type Designation
Product type designationSCALANCE XCM102
Technical Product Detail Pagehttps://i.siemens.com/1P6GK5102-1GS00-2AC2
Transfer Data
Transfer rate100 Mbit/s, 1000
Interfaces
Number of electrical/optical connections
  • for network components or terminal equipment / maximum
2
Number of electrical connections
  • for network components or terminal equipment
1
  • for SFP / plug-in
1; 100 Mbps and 1000 Mbps SFP plug-in transceiver usable
  • for signaling contact
1
  • for power supply
1
  • for redundant voltage supply
1
Type of electrical connection
  •  for network components or terminal equipment
RJ45 port
Signal Inputs/Outputs
Operating voltage / of the signaling contacts
  • at DC / rated value
24 V
Operational current / of the signaling contacts
  • at DC / maximum
0.1 A
Supply Voltage, Current Consumption, Power Loss
Supply voltage / 1 / rated value24 V
  • consumed current / 1 / at rated supply voltage / maximum
0.15 A
  •  power loss [W] / 1 / rated value
2.5 W
Supply voltage / 2 / rated value24 V
  • consumed current / 2 / at rated supply voltage / maximum
0.3 A
  • power loss [W] / 2 / rated value
5 W
Product component / fusing at power supply inputYes
  • Consumed current maximum
dependent on the use of SFP plug-in transceiver
  • Power loss [W] maximum
dependent on the use of SFP plug-in transceiver
