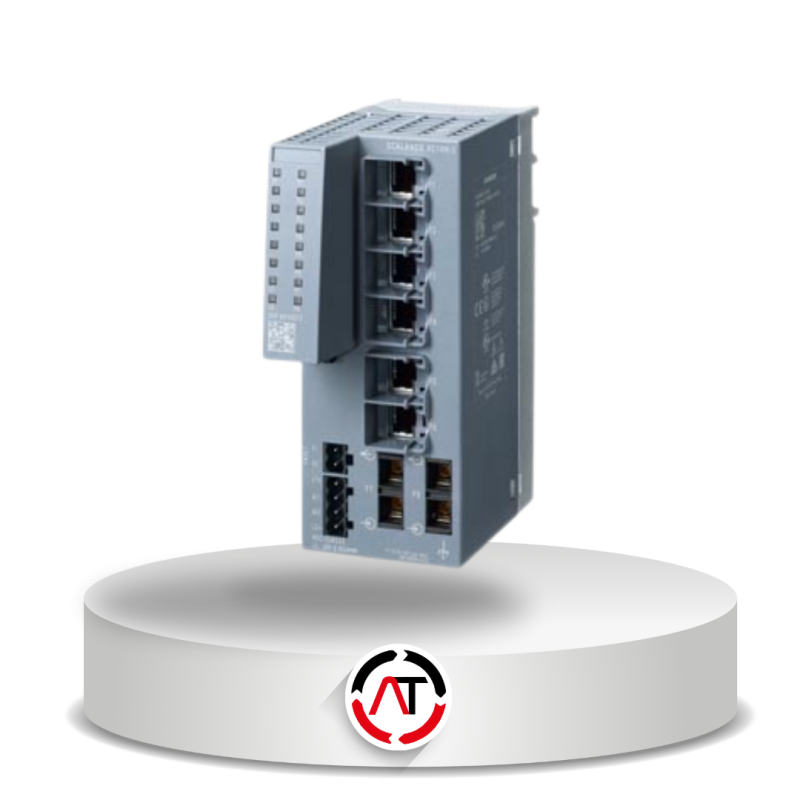

SCALANCE XC106-2, Switch IE unmanaged, 6x 10/100 Mbit/s RJ45 ports, 2x 100 Mbit/s Multimode SC, LED diagnostics, kontak sinyal kesalahan dengan tombol set, catu daya redundan. Manual tersedia untuk diunduh.
Siklus hidup produk
Produk Aktif
Kelas produk
A: Produk standar yang merupakan barang stok dan dapat dikembalikan sesuai pedoman/periode pengembalian.
Dimensi kemasan (P x L x T)
109,00 x 80,00 x 117,00 mm
Berat bersih
0,5 kg
| product type designation | product brand name | SCALANCE |
| product type designation | XC106-2 | |
| Technical Product Detail Page | https://i.siemens.com/1P6GK5106-2BD00-2AC2 | |
| transfer rate | transfer rate | 10, 100 Mbit/s |
| interfaces / for communication / integrated | number of electrical connections ● for network components or terminal equipment | 6; RJ45 |
| number of 100 Mbit/s SC ports ● for multimode | 2 | |
| interfaces / other | number of electrical connections ● for signaling contact | 1 |
| number of electrical connections ● for power supply | 1 | |
| operating voltage / of the signaling contacts ● at DC / rated value | 24 V | |
| operational current / of the signaling contacts ● at DC / maximum | 0.1 A | |
| supply voltage, current consumption, power loss | product component / connection for redundant voltage supply | Yes |
| type of voltage / 1 / of the supply voltage ● supply voltage / 1 / rated value | 24 V | |
| ● power loss [W] / 1 / rated value | 4.8 W | |
| ● supply voltage / 1 / voltage range | 9.6 ... 31.2 | |
| ● consumed current / 1 / maximum | 0.4 A | |
| ● product component / 1 / fusing at power supply input | Yes |
