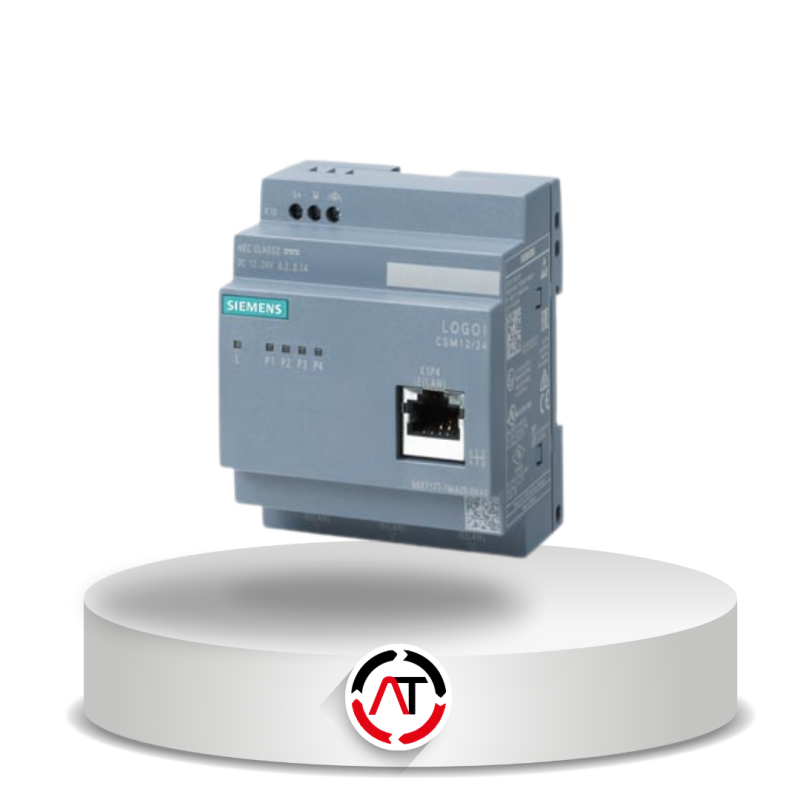

Ethernet Switches - LOGO! CSM12/24
Cumunicating & Networking

Ethernet Switches - LOGO! CSM12/24

Tersedia

Overview

LOGO! CSM12/24  Modul switch compact untuk menghubungkan LOGO! (. ..0BA7 / ...0BA8) dan hingga 3 node tambahan ke jaringan Industrial Ethernet dengan kecepatan 10/100 Mbit/s. Switch ini bersifat unmanaged, memiliki 4 port RJ45, serta 1x port depan untuk keperluan diagnostik.Menggunakan power supply DC 12/24V, dilengkapi indikator LED diagnostik, dan mendukung pengaturan LOGO!

Features

  1. Siklus Produk
    Produk Aktif
  2. Kelas Produk
    A: Produk standar yang merupakan barang stok dan dapat dikembalikan sesuai dengan pedoman/periode pengembalian.
  3. Dimensi Kemasan (P x L x T)
    75,00 x 45,00 x 100,00 mm
  4. Berat Bersih
    0,19 kg

Deskripsi Produk

Series

Product Type Designation
Product brand nameLOGO!
Product type designationCSM 12/24
Technical Product Detail Pagehttps://i.siemens.com/1P6GK7177-1MA20-0AA0
Transfer Data
Transfer rate10, 100 Mbit/s
Interfaces / For Communication / Integrated
Number of electrical connections
  • for network components or terminal equipment
4
Number of 100 Mbit/s SC ports
  • for multimode
0
Interfaces / Other
Number of electrical connections
  • for power supply
1
Supply Voltage, Current Consumption, Power Loss
Type of voltage / 1 / of the supply voltage
  • supply voltage / 1 / rated value
24 V
  • power loss [W] / 1 / rated value
1.5 W
  •  spply voltage / 1 / voltage range
10.2 ... 30.2
  • consumed current / 1 / maximum
0.15 A
  • product component / 1 / fusing at power supply input
Yes
