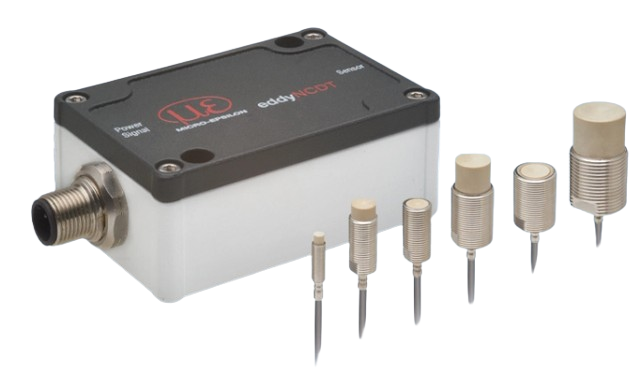

The eddyNCDT 3020 is a compact and powerful inductive measuring system (eddy current) for fast and precise displacement, distance and position measurements in industrial applications. Flexible in terms of connectivity and easy to configure, it can be used for numerous measurement tasks in industry and machine building.
The sensor system is designed for series and OEM applications and delivers precise and stable measurement results even under harsh conditions - up to max. 200 °C ambient temperature. The robust controller can be combined with a wide variety of sensors and is factory-adapted to ferromagnetic or non-ferromagnetic materials.
| Model | DT3020 |
|---|---|
| Resolution [1] | |
| Static | 0.004 % FSO |
| Dynamic | 0.01 % FSO |
| Frequency response (-3dB) [2] | 9 adjustable stages: 10 Hz … 5 kHz |
| Measuring rate | |
| Analog output | 80 kSa/s |
| Digital output | 10 kSa/s |
| Linearity [3] | < ±0.2 % FSO |
| Temperature stability [4] | < 0.025 % FSO / K |
| Temperature compensation | 10 … 105 °C |
| Target material [5] | Steel, aluminum |
| No. of characteristic curves | 1 |
| Supply voltage | 12 … 32 VDC |
| Power consumption | < 1.7 W |
| Digital interface [6] | RS485 / USB / Ethernet / EtherCAT / PROFINET / EtherNet/IP |
| Analog output | 4 … 20 mA (max. 500 Ω load, freely scalable 0 … 20 mA) |
| Switching output | Selectable: NPN, PNP, push-pull |
| Connection | Sensor: plug connector triaxial socket; supply/signal: 8-pole M12 connector |
| Mounting | Through-bores (Ø 4.4 mm) |
| Temperature range | |
| Storage | -20 … 105 °C (non-condensing) |
| Operation | -20 … 105 °C (non-condensing) |
| Shock (DIN EN 60068-2-27) | 15 g / 6 ms in 3 axes, 2 directions and 1000 shocks each |
| Vibration (DIN EN 60068-2-6) | 5 g / 10 … 500 Hz in 3 axes, 2 directions and 10 cycles each |
| Protection class (DIN EN 60529) | IP67 (plugged) |
| Material | Aluminum die-cast |
| Weight | approx. 190 g |
| Control and indicator elements [7] | 3-point linearization, scaling of the analog output, filter & averaging, interface selection via sensorTOOL software |
