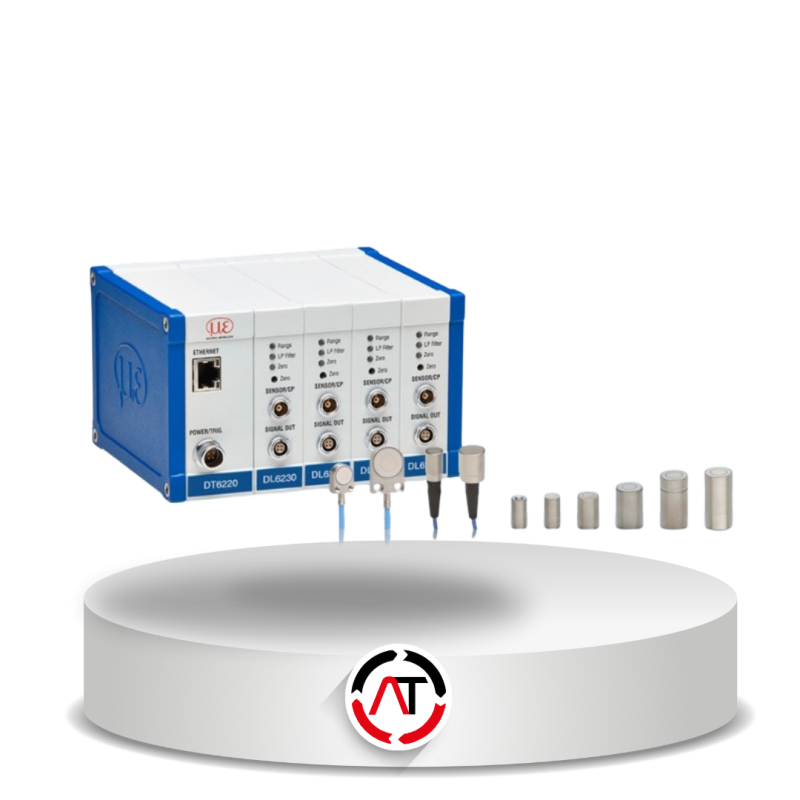

The capaNCDT 6200 is the first entirely modular multi-channel measuring system. The controller can be expanded to 4 channels and is therefore suitable for flexible applications. All capacitive displacement sensors from Micro-Epsilon can be operated using the capaNCDT 6200 controller. The integrated Ethernet interface supports parameter setting and measurements via web interface. The DL6230 demodulator provides high resolution measurements. For high-speed measurements up to 20 kHz, the capaNCDT 6222 system is available.
| Parameter | Specification |
|---|---|
| Type | Modular multi-channel capacitive measuring system |
| Expandability | Up to 4 measurement channels |
| Sensor compatibility | Compatible with all capaNCDT sensors |
| Interface / Configuration | Ethernet / Web-based interface (via browser) |
| Supported Fieldbus / Industrial Ethernet | Options include EtherCAT, PROFINET (depending on controller variant) |
| Measuring ranges (sensor) | 0.05 / 0.2 / 0.5 / 0.8 / 1 / 2 / 3 / 5 / 10 mm |
| Static resolution | 0.004 % FSO (with DL6220) 0.0005 % FSO (with DL6230) |
| Dynamic resolution | 0.02 % FSO @ 5 kHz (DL6220) 0.005 % FSO @ 5 kHz (DL6230) |
| Bandwidth (-3 dB) | 5 kHz (standard) Up to 20 kHz (with high speed version / controller) |
| Data rate (digital output) | Max. 3.906 kSa/s per channel |
| Linearity (typical) | ≤ ± 0.05 % FSO (DL6220 version) ≤ ± 0.025 % FSO (higher-resolution demodulator version) |
| Sensitivity deviation | ≤ ± 0.1 % FSO |
| Long-term stability | ≤ 0.02 % FSO / month |
| Temperature stability | 200 ppm / °C |
| Operating temperature range | Sensor: –50 °C … +200 °C Controller: +10 °C … +60 °C |
| Storage temperature range | –10 °C … +75 °C |
| Supply voltage | 24 V DC (ranges depend on controller variant) |
| Trigger / Synchronization | Synchronous operation supported (e.g. multiple channels synchronized) |
| Mounting / Housing | Controller is modular; can be benchtop, wall-mounted, or DIN-rail mounted via adapter |
| Additional features | Expandable modules, filter settings, arithmetic linking of channels, web-configurable settings |
