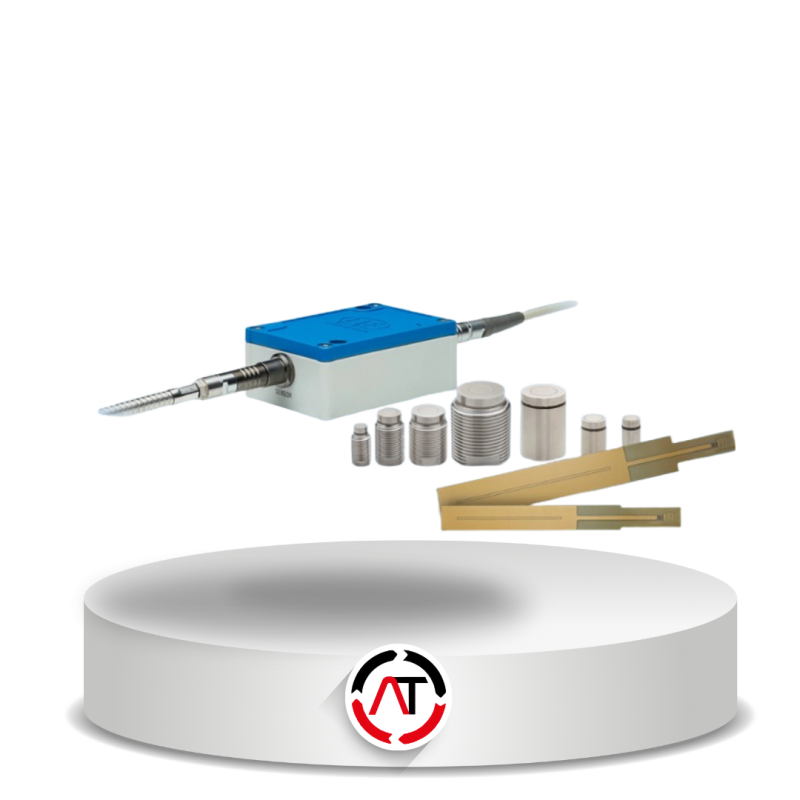

The capaNCDT DT61x0/IP is an industrial-grade, capacitive sensor system for displacement, distance and position measurements. Consisting of a sensor, a sensor cable and a controller, the measuring system is ready for use without any on-site calibration. Due to its very good temperature stability, immunity to magnetic fields and robust design that is protected to IP68, the capaNCDT DT61x0/IP is used for industrial measurement tasks such as air gap measurement in generators and regulation of plant and machinery.
| Modell | DT6110/IP/U | DT6120/IP/U | DT6110/IP/I | DT6120/IP/I |
|---|---|---|---|---|
| Resolution (static 2 Hz) | 0.01 % FSO | 0.02 % FSO | ||
| Resolution (dynamic 1 kHz) | ||||
| Frequency response (−3 dB) | 1 kHz | 1 kHz | 1 kHz | 1 kHz |
| Linearity | ≤ ±0.1 % FSO | ≤ ±0.1 % FSO | ≤ ±0.1 % FSO | ≤ ±0.1 % FSO |
| Temperature stability (1) | 50 ppm FSO/K | 50 ppm FSO/K | 50 ppm FSO/K | 50 ppm FSO/K |
| Sensitivity | ≤ ±0.1 % FSO | ≤ ±0.1 % FSO | ≤ ±0.1 % FSO | ≤ ±0.1 % FSO |
| Long-term stability | 0.02 % FSO/month | 0.02 % FSO/month | 0.02 % FSO/month | 0.02 % FSO/month |
| Synchronization | no | no | no | no |
| Supply voltage | 9 … 28 VDC | 9 … 28 VDC | 11 … 28 VDC | 11 … 28 VDC |
| Power consumption | 1.4 W | 1.6 W | 2 W | 2.2 W |
| Analog output | 0 … 10 V / ±5 V (short circuit proof) | 0 … 10 V / ±5 V (short circuit proof) | 4 … 20 mA (max. 500 Ω load) | 4 … 20 mA (max. 500 Ω load) |
| Digital interface (2) | - | RS485 | - | RS485 |
| Connection | sensor connection: type B socket; IP68supply & output connection: 6-pin socket; IP68 | sensor connection: type B socket; IP68supply & output connection: 6-pin socket; IP68 | sensor connection: type B socket; IP68supply & output connection: 6-pin socket; IP68 | sensor connection: type B socket; IP68supply & output connection: 6-pin socket; IP68 |
| Temperature range (operation) | −20 °C … +60 °C | −20 °C … +60 °C | −20 °C … +60 °C | −20 °C … +60 °C |
| Temperature range (storage) | −20 °C … +75 °C | −20 °C … +75 °C | −20 °C … +75 °C | −20 °C … +75 °C |
| Shock (DIN-EN 60068-2-29) | 20 g / half-sine 5 ms in XYZ axes / 1000 shocks per axis | 20 g / half-sine 5 ms in XYZ axes / 1000 shocks per axis | 20 g / half-sine 5 ms in XYZ axes / 1000 shocks per axis | 20 g / half-sine 5 ms in XYZ axes / 1000 shocks per axis |
| Vibration (DIN-EN 60068-2-6) | 10 g / 10 … 2000 Hz in XYZ axes / 10 cycles per axis | 10 g / 10 … 2000 Hz in XYZ axes / 10 cycles per axis | 10 g / 10 … 2000 Hz in XYZ axes / 10 cycles per axis | 10 g / 10 … 2000 Hz in XYZ axes / 10 cycles per axis |
| Protection class (DIN-EN 60529) | IP68 | IP68 | IP68 | IP68 |
| Material | die-cast aluminum | die-cast aluminum | die-cast aluminum | die-cast aluminum |
| Weight | 165 g | 165 g | 165 g | 165 g |
