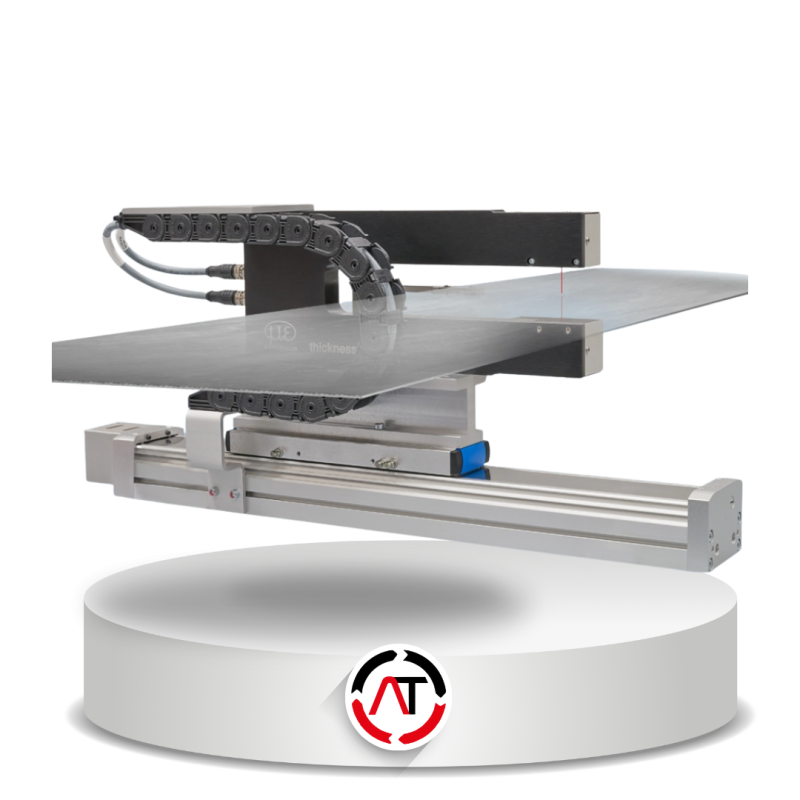

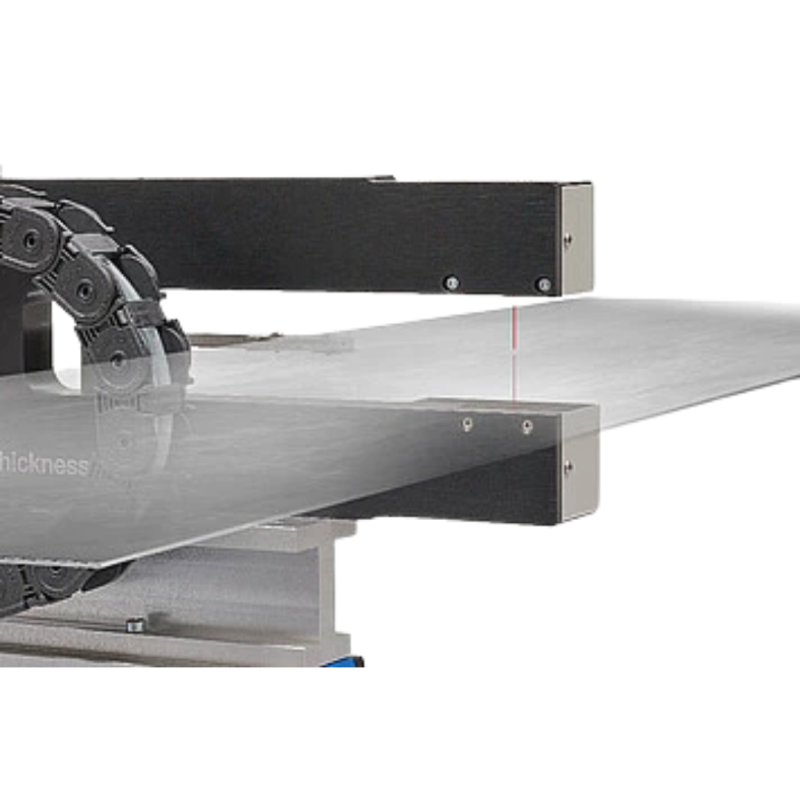

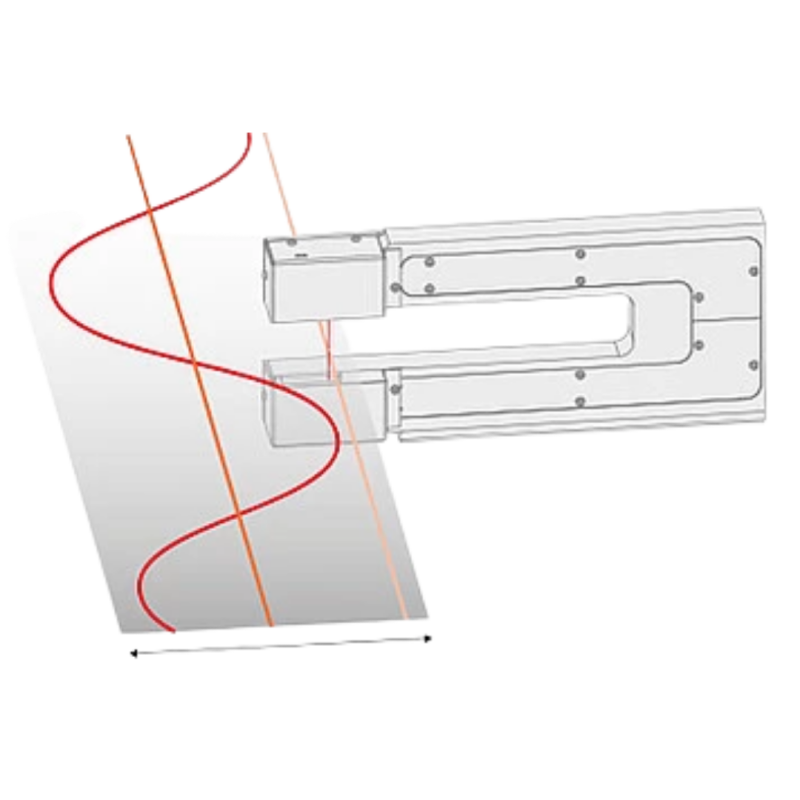

Sistem sensor thicknessGAUGE C.LL menggunakan sensor laser triangulation untuk pengukuran ketebalan. Sensor laser ini memungkinkan kecepatan pengukuran yang tinggi pada kecepatan proses yang cepat. Seri thicknessGAUGE.laser menawarkan rasio harga dan performa yang sangat kompetitif, sehingga ideal digunakan untuk pengukuran ketebalan pada permukaan umum seperti plastik, kayu, dan logam.
Teknologi sensor: Sensor perpindahan laser triangulation
Rentang pengukuran (ketebalan): 6 / 50 mm
Akurasi sistem: ±1 / ±5 µm
Kecepatan pengukuran: hingga 10 kHz
Sistem sensor dengan harga kompetitif untuk berbagai permukaan umum, dari plastik hingga logam
Desain ringkas dengan performa tinggi dan rasio harga/performa yang sangat baik
| Model | C.LL-6/200 | C.LL-6/400 | C.LL-6/600 |
|---|---|---|---|
| Article Number | 4350127.811 | 4350127.812 | 4350127.813 |
| Measuring Width | 200 mm | 400 mm | 600 mm |
| Operating Range | 33 mm | ||
| Measuring Range | 6 mm | ||
| Max. Travel Path | 380 mm | 580 mm | 780 mm |
| System Accuracy | ± 1 µm | ||
| Resolution | 0.1 µm | ||
| Measuring Rate | Up to 10 kHz | ||
| Calibration | Automatic | ||
| Weight – Axis, Motor, and C-frame | 13.7 kg | 17.2 kg | 20.4 kg |
| Weight – Bus Terminal Box & Panel IPC | 14 kg | ||
| Supply Voltage | 24 V | ||
| Humidity | 5% RH ... 95% RH (non-condensing) | ||
| Protection Class (DIN EN 60529) | IP40 (bus terminal box IP54) | ||
| Temperature Range – Storage | -20 … 65 °C | ||
| Temperature Range – Operation | 5 … 45 °C | ||
| Control & Display Elements | Panel IPC with thicknessCONTROL software included in scope of supply | ||
| Special Features | Compact bus terminal box measuring 300 × 300 × 210 mm | ||
| Model | C.LL-50/200 | C.LL-50/400 | C.LL-50/600 |
|---|---|---|---|
| Article Number | 4350127.820 | 4350127.821 | 4350127.822 |
| Measuring Width | 200 mm | 400 mm | 600 mm |
| Operating Range | 121 mm | ||
| Measuring Range | 50 mm | ||
| Max. Travel Path | 380 mm | 580 mm | 780 mm |
| System Accuracy | ± 5 µm | ||
| Resolution | 1 µm | ||
| Measuring Rate | Up to 10 kHz | ||
| Calibration | Automatic | ||
| Weight – Axis, Motor, and C-frame | 15.2 kg | 19.9 kg | 23.6 kg |
| Weight – Bus Terminal Box & Panel IPC | 14 kg | ||
| Supply Voltage | 24 V | ||
| Humidity | 5% RH ... 95% RH (non-condensing) | ||
| Protection Class (DIN EN 60529) | IP40 (bus terminal box IP54) | ||
| Temperature Range – Storage | -20 … 65 °C | ||
| Temperature Range – Operation | 5 … 45 °C | ||
| Control & Display Elements | Panel IPC with thicknessCONTROL software included in scope of supply | ||
| Special Features | Compact bus terminal box measuring 300 × 300 × 210 mm | ||
